Advantech PCIE-1758 DIO

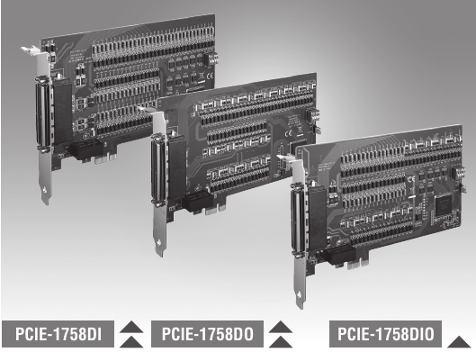

The Advantech DIO 1758 is a digital input/output board.
Depending n the version order, the board can have 64 digital inputs and 64 digital outputs. 128 digital inputs or 128 digital outputs. Simulation Workbench supports all three varieties of the board.
The board supports debounce filtering on its digital inputs. Each channel represents a single boolean value that may be mapped to a digital I/O point.

Reference Information

I/O Card Model Number

PCIE-1758DIO, PCIE-1758DI, PCIE-1758DO

I/O Driver Model Number

N/A

I/O Module License:

ICS-SWB-1254

Mapping Table

Board Type

Select the board type for this instance as either a DIO, DI or DO.

Type / Bit Column

The board hardware is organized as 8 ports of 8 bits each.Bit number of each I/O pin.
Each individual hardware bit can be mapped to digital Input or Output variable.

Filter Column

The filter debounce timing can be selected individually for every input port (group of 8 bits). Filter available are from no filter to a maximum of 131 ms.

Enable Filter Column

Additionally, the filter selected for a group can be enabled/disabled for each individual input bits.

Mapped Point(s)

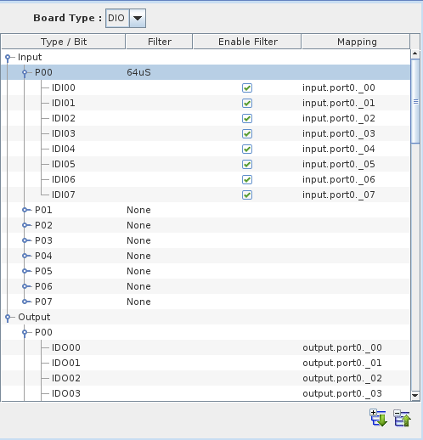

Select a bit on the left side of the I/O Mappings form, then click on a check box for an I/O point on the right side of the form. See I/O Mappings... for details.

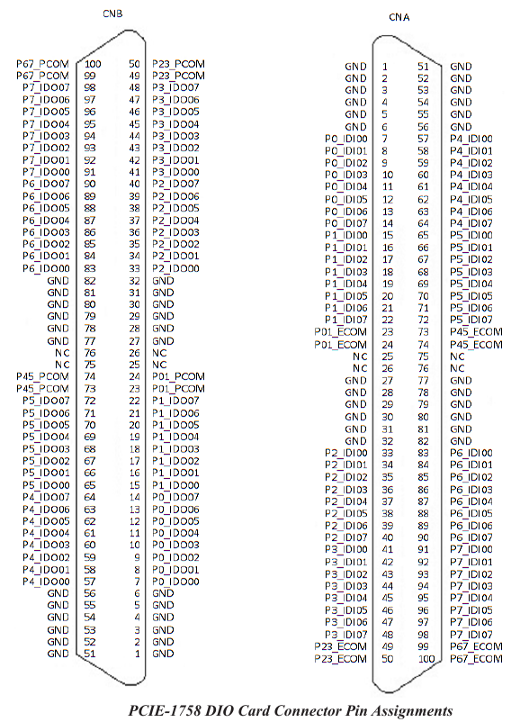

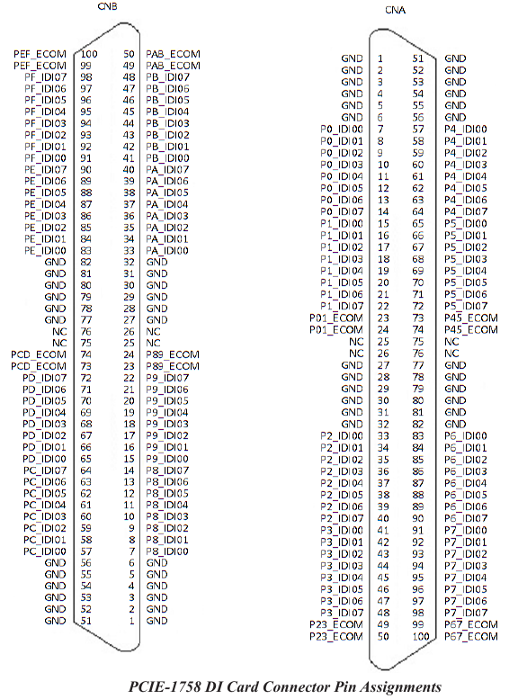

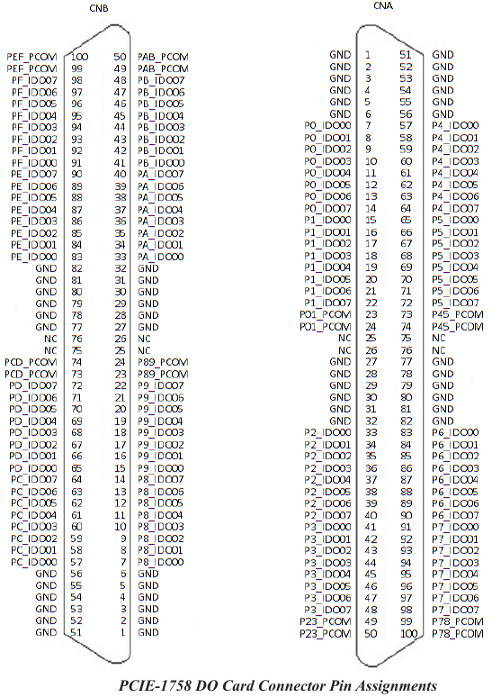

Advantech PCIE-1758 Connector

Sample project

The AdvTech1758 SimWB project is provided as part of the release under the Hardware-Tests project.
It contains a RTDB called advtech1758 that maps every single bits for the DIO version of the card.
The tests assume that you have loopback connector, as shown to the right, installed where every output bit is looped back to its corresponding input bit.
The project provides 3 SimWB 3 tests:

dio: Loads the RTDB only. Individual output bits can be set in the RTViewer via the SimWB Control Center.
togglebits: Loads the RTDB only and runs the test script togglebits which toggles all the inputs bits every 5 ms.
checkbits: Loads the RTDB only and runs the test script checkbits which writes a pattern of bits to the outputs and checks that the corresponding input bit matches the output. The script will issue an error message to the GUI control center cfgsrv.log window when a mismatch is detected.
