simerrors.h File Reference

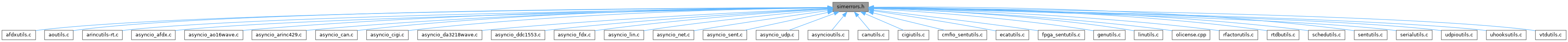

This graph shows which files directly or indirectly include this file:

Defines
#define	Log_Warning(format,...)   ccurTSC_printf ("WARNING:%18s:%5d: " format, __FILE__,__LINE__,## __VA_ARGS__)
#define	Log_Error(format,...)   ccurTSC_printf (" ERROR:%18s:%5d: " format, __FILE__,__LINE__,## __VA_ARGS__)
#define	Log_Info(format,...)   ccurTSC_printf (" INFO:%18s:%5d: " format, __FILE__,__LINE__,## __VA_ARGS__)
#define	DBG_APPEND(format,...)
#define	DBG_PRINTF(format,...)
#define	DBGLVL_PRINTF(bits, format,...)
Enumerations
enum	CCURSIMErrors_Network {   NET_CONNREFUSED = -301, NET_HOSTNOTFOUND = -302, NET_CONNRESET = -303, NET_NOTCONNECTED = -304,   NET_BUFFERTOOLONG = -305, NET_TOOMANYCLIENTS = -306, NET_SOCKETERROR = -307, NET_WRITEERROR = -308,   NET_READERROR = -309, NET_BADCOMMANDFORMAT = -310, NET_CONNECTEDALREADY = -311, NET_TIMEOUT = -312,   NET_NOREFRESHPORT = -313, NET_NOSCRIPTPORT = -314, NET_BINDERROR = -315, NET_NOPORT = -316,   NET_IPNOTALLOWED = -317, NET_BADREPLYFORMAT = -318 }
enum	CCURSIMErrors_User {   USER_NOTFOUND = -201, USER_NOPRIVILEGE = -202, USER_NOTDEFINED = -203, USER_BADPASSWD = -204,   USER_STILLLOGGED = -205, USER_NOTLOGGED = -206, USER_INVALID = -207, USER_FILEERROR = -208,   USER_EXISTS = -209, USER_BADPRIVILEGE = -210, USER_INVALIDPASSWD = -212, USER_NOPASSWD = -213,   USER_INVALIDCHAR = -214, USER_ADMINLOGGEDIN = -215, USER_NOAPPTYPE = -216, USER_NOLICENSE = -217,   USER_NOFIBEXLICENSE = -218, USER_BADGROUP = -219, USER_NOTINGROUPDENIED = -220, USER_NOSIMPACKLICENSE = -221,   USER_NOFMULICENSE = -222, USER_NOHMILICENSE = -223, USER_BADCONNECTIONTYPE = -224, USER_NOIOMONITORLICENSE = -225,   USER_NOGLSVIEWERLICENSE = -226, USER_NOADAMSLICENSE = -228, USER_NOCARMAKERLICENSE = -229 }
enum	CCURSIMNet_Replies {   NET_REPLY_EMPTY = 200, NET_REPLY_ASCII = 220, NET_REPLY_BINARY = 230, NET_UPDATE_BINARY = 231,   NET_UPDATE_ASCII = 232, NET_UPDATE_LOG = 233, NET_UPDATE_SCHED = 234, NET_SERVER_COMMAND = 235,   NET_UPDATE_TESTINFO = 236, NET_UPDATE_GENINFO = 237, NET_UPDATE_IO = 238, NET_UPDATE_SCHEDASYNC = 239 }
enum	CCURSIMErrors_RTDB {   RTDB_MAP = -401, RTDB_POINTNOTFOUND = -402, RTDB_POINTNOTINLIST = -403, RTDB_DBFILENOTFOUND = -404,   RTDB_POINTEXISTS = -405, RTDB_DBNOROOM = -406, RTDB_NOTMAPPED = -407, RTDB_NODBFILE = -408,   RTDB_BADPOINTTYPE = -409, RTDB_BADCVTTYPE = -410, RTDB_BADKEYWORD = -411, RTDB_BADBOARDID = -412,   RTDB_BADSLOT = -413, RTDB_BADCHANNEL = -414, RTDB_BADBITNUM = -415, RTDB_MISSINGPOINTNAME = -416,   RTDB_NAMETOOLONG = -417, RTDB_BADFLOATVALUE = -418, RTDB_BADINTVALUE = -419, RTDB_NOTSTRINGVAR = -420,   RTDB_NOSTRINGMEMORY = -421, RTDB_MISSINGVALUE = -422, RTDB_DBLOADEDALREADY = -423, RTDB_OPENCVTFILE = -424,   RTDB_MISSINGFILENAME = -425, RTDB_MISSINGCVTTYPE = -426, RTDB_NOTINCVT = -427, RTDB_NOSTRINGVAR = -428,   RTDB_BADSDI = -429, RTDB_BADPARITY = -430, RTDB_BADSPEED = -431, RTDB_BADTXPERIOD = -432,   RTDB_BADAFDXRECORD = -433, RTDB_MISSINGDESCRIPTION = -434, RTDB_ILLEGALSTRINGLENGTH = -435, RTDB_TESTRUNNING = -436,   RTDB_IODBERROR = -437, RTDB_AFDXMSGTABLEFULL = -438, RTDB_AFDXMSGNOTFOUND = -439, RTDB_NOALTVALUE = -440,   RTDB_NOINITCONDNAME = -441, RTDB_NORTWNAME = -442, RTDB_GENMISSINGPARM = -443, RTDB_TESTNOTRUNNING = -444,   RTDB_MISSINGBOARDID = -445, RTDB_ASYNCQFULL = -446, RTDB_MISSINGBOARDNUM = -447, RTDB_MISSINGPARAM = -448,   RTDB_NOSPAREITEM = -449, RTDB_NOMEMORY = -450, RTDB_LOCKED = -451, RTDB_MISSINGGROUPNAME = -452,   RTDB_MISSINGRESOURCETYPE = -453, RTDB_MISSINGRESOURCENAME = -454, RTDB_SETCPUAFFINITYERROR = -455, RTDB_INVALIDRTDBNAME = -456,   RTDB_NETMSGTABLEFULL = -457, RTDB_NETMSGNOTFOUND = -458, RTDB_MISSINGFORMNAME = -459, RTDB_FORMNOTFOUND = -460,   RTDB_CIGIMSGTABLEFULL = -461, RTDB_SETCPUSHIELDINGERROR = -462, RTDB_MERGE = -463, RTDB_FDXMSGTABLEFULL = -464,   RTDB_FDXMSGNOTFOUND = -465, RTDB_ALREADYEXITS = -466, RTDB_IMPORTCARMAKER = -467 }
enum	CCURSIMErrors_Projects {   PROJECT_MISSINGNAME = -501, PROJECT_NOTEXISTS = -502, PROJECT_DEFAULT = -503, PROJECT_INVALIDNAME = -504,   PROJECT_ILLEGALRESOURCE = -505 }
enum	CCURSIMErrors_Config { CONFIG_NOCOMMAND = -601, CONFIG_NOMEMORY = -602, CONFIG_FORKERROR = -603 }
enum	CCURSIMErrors_GenericFile {   UTIL_FILEERROR = -701, UTIL_FILENOTFOUND = -702, UTIL_DIRECTORYCREATE = -703, UTIL_FILEOPENERROR = -704,   UTIL_NOBINARYDEFAULT = -705, UTIL_FILEREMOVEERROR = -706, UTIL_MISSINGFILENAME = -707, UTIL_MISSINGDIRNAME = -708,   UTIL_PIPEERROR = -709, UTIL_DIRECTORYEXISTS = -710 }
enum	CCURSIMErrors_GEN {   GEN_GENERATORNOTFOUND = -801, GEN_BADFREQUENCY = -802, GEN_BADDUTYCYCLE = -803, GEN_BADDURATION = -804,   GEN_BADWAVEFORM = -805, GEN_BADCALLBACK = -806, GEN_MISSINGENDCOND = -807, GEN_GENCMDQFULL = -808,   GEN_ASAMFILENOTFOUND = -809, GEN_ASAMOPEN = -810, GEN_ASAMREADINFO = -811, GEN_ASAMREADDATA = -812 }
enum	CCURSIMErrors_SCRIPT {   SCRIPT_NOTARINCPOINT = -850, SCRIPT_NOTARINCOUTPUT = -851, SCRIPT_BADARINCTXRATE = -842, SCRIPT_INPUTTIMEOUT = -853,   SCRIPT_BADARINCBOARD = -854, SCRIPT_BADARINCCHANNEL = -855, SCRIPT_NOTAFDXPOINT = -856, SCRIPT_NOTAFDXOUTPUT = -857,   SCRIPT_NOTNETPOINT = -858, SCRIPT_NOTNETOUTPUT = -859, SCRIPT_NOTCANOUTPUT = -860, SCRIPT_NOTCANPOINT = -861,   SCRIPT_NOTLINOUTPUT = -862, SCRIPT_NOTLINPOINT = -863, SCRIPT_NOTCIGIPOINT = -864, SCRIPT_NOTCIGIOUTPUT = -865,   SCRIPT_NOTFDXPOINT = -866, SCRIPT_NOTFDXOUTPUT = -867 }
enum	CCURSIMRTErrors_SCRIPT {   SCRIPTRT_SCRIPTSTART = 2000, SCRIPTRT_SCRIPTEND = 2001, SCRIPTRT_SCRIPTSECTIONSTART = 2010, SCRIPTRT_SCRIPTSECTIONEND = 2011,   SCRIPTRT_WAITCOND_TIMEOUT = -2000, SCRIPTRT_PROMPT_TIMEOUT = -2001, SCRIPTRT_LOGTEST_FAILED = -2002, SCRIPTRT_RTDBVAR_NOTFOUND = -2003,   SCRIPTRT_SIGGEN_CREATE_ERROR = -2004, SCRIPTRT_TOOMANY_CALLBACKS = -2005, SCRIPTRT_VALUEOUTOFRANGE = -2006, SCRIPTRT_ABORT = -2007 }
enum	CCURSIMErrors_SourceProgram {   SOURCE_MISSINGFILENAME = -901, SOURCE_MISSINGDESCRIPTION = -902, SOURCE_MISSINGTYPE = -903, SOURCE_BADTYPE = -904,   SOURCE_UNZIPERROR = -905, SOURCE_NOTEXISTS = -906, SOURCE_MAKEERROR = -907, SOURCE_NOBUILDOPTION = -908,   SOURCE_MISSINGFIXEDSTEP = -909 }
enum	CCURSIMErrors_TestManagement {   TEST_MISSINGTESTID = -1001, TEST_MISSINGSESSIONID = -1002, TEST_MISSINGRUNFRAMES = -1003, TEST_MISSINGFRAMERATE = -1004,   TEST_MISSINGSCRIPT = -1005, TEST_MISSINGRTW = -1006, TEST_MISSINGDB = -1007, TEST_TESTIDEXISTS = -1008,   TEST_SESSIONIDEXISTS = -1009, TEST_ILLECALCHARINNAME = -1010, TEST_SESSIONNOTFOUND = -1011, TEST_MISSINGSESSIONSETUP = -1012,   TEST_SCHEDULERSTART = -1013, TEST_RUNNINGALREADY = -1014, TEST_MISSINGFBSKEY = -1015, TEST_MISSINGFBSDEVICE = -1016,   TEST_MISSINGRESOURCE = -1017, TEST_REMOTESTARTTIMEOUT = -1018, TEST_ARCHIVEMISSINGPARAM = -1019, TEST_REMOTESTOPTIMEOUT = -1020,   TEST_NOTFOUND = -1021 }
enum	CCURSIMSCompletionCode_Scheduler {   SCHED_TESTCOMPLETE = 1, SCHED_SCRIPTSTOPSUCCESS = 2, SCHED_SUCCESSEORSTOP = 3, SCHED_STOPSUCCESS_EOS = 4,   SCHED_STOPSUCCESS_RTW = 5, SCHED_STOPSUCCESS_CARMAKER = 6, SCHED_INITFAILURE = -101, SCHED_USERABORT = -102,   SCHED_OVERRUNABORT = -103, SCHED_SCRIPTSTOPERROR = -104, SCHED_DLABORT = -105, SCHED_IOTASKABORT = -106,   SCHED_RTWFAILEDINIT = -107, SCHED_DLREADERABORT = -108, SCHED_FBSABORT = -109, SCHED_RTWABORT = -110,   SCHED_DLABORTFAILEDLOCK = -111, SCHED_FAILEDUSERINITPROCESS = -112, SCHED_DLABORTLOCKERROR = -113, SCHED_SIGSEGV = -114,   SCHED_BUSY = -115, SCHED_RTW_MULTIRATEOVEERUN = -116, SCHED_STROVERFLOW = -117, SCHED_INITSCRIPTABORT = -118,   SCHED_FPEABORT = -119, SCHED_FMUABORT = -120, SCHED_ADAMSABORT = -121, SCHED_SCHEDABORT = -122,   SCHED_TASKNOTFOUND = -123 }
enum	CCURSIMErrors_DLAccess {   DLFILE_FRAMENOTFOUND = -1100, DLFILE_DATAFILEOPEN = -1101, DLFILE_INDEXFILEOPEN = -1102, DLFILE_METAFILEOPEN = -1103,   DLFILE_VARNOTFOUND = -1104, DLFILE_NOLASTUPDATE = -1105, DLFILE_INVALIDARG = -1106, DLFILE_FRAMETOOLARGE = -1107,   DLFILE_CIRCLOGLOCKED = -1108 }
enum	CCURSIMErrors_DLReader {   DLREADER_ERROR_SESSIONNOTOPEN = -1201, DLREADER_ERROR_FILEOPEN = -1202, DLREADER_ERROR_READMETA = -1203, DLREADER_ERROR_READDATA = -1204,   DLREADER_ERROR_QUERYTEST = -1205, DLREADER_ERROR_OUTOFSYNCREPLY = -1206 }
enum	CCURSIMErrors_ASAM {   ASAM_ERROR_MAKESRV = -1301, ASAM_ERROR_SIGNALASAMSRV = -1302, ASAM_ERROR_NOTRUNNING = -1303, ASAM_ERROR_NOTLOGGING = -1304,   ASAM_ERROR_DIRECTIO = -1305, ASAM_ERROR_BADSIGNALTYPE = -1306, ASAM_ERROR_SIMWB_TARGET = -1307, ASAM_ERROR_MISSING_LOCK = -1308,   ASAM_ERROR_ALREADY_LOCKED = -1309, ASAM_ERROR_WRITE_XML = -1310, ASAM_ERROR_READ_XML = -1311, ASAM_ERROR_XML_NOT_TARGET = -1312,   ASAM_PYTHON_VERSION = -1313, ASAM_ERROR_BADSEGMENT = -1314 }
enum	CCURSIMErrors_DLFSrv {   DLFSRV_ERROR_SESSIONNOTOPEN = -2101, DLFSRV_ERROR_FILEOPEN = -2102, DLFSRV_ERROR_READMETA = -2103, DLFSRV_ERROR_BAD_STARTFRAME = -2104,   DLFSRV_ERROR_BAD_NFRAMES = -2105, DLFSRV_ERROR_BAD_NVARIABLES = -2106, DLFSRV_ERROR_QUERYTEST = -2107, DLFSRV_ERROR_OUTOFSYNCREPLY = -2108,   DLFSRV_ERROR_ZLIBCOMPRESS = -2109, DLFSRV_ERROR_SOCKREAD = -2110, DLFSRV_ERROR_SOCKWRITE = -2111, DLFSRV_ERROR_BAD_NAME = -2112,   DLFSRV_ERROR_BAD_INDEX = -2113, DLFSRV_ERROR_RECSIZMISMATCH = -2114, DLFSRV_ERROR_INSUFFICIENT_INFO = -2115 }
enum	CCURSIMWBErrors_PYToolkit {   PYTOOLKIT_LISTEXPECTED = -2201, PYTOOLKIT_TOOMANYVALUES = -2202, PYTOOLKIT_NUMVALUES = -2203, PYTOOLKIT_BADINDEX = -2204,   PYTOOLKIT_BADFISCFAULT = -2205, PYTOOLKIT_BADUEGOFAULT = -2206, PYTOOLKIT_BADRESISTORFAULT = -2207, PYTOOLKIT_BADFAULTDEVICE = -2208,   PYTOOLKIT_MISSINGFAULTS = -2209, PYTOOLKIT_RELATIVEPATH = -2210, PYTOOLKIT_BADPGMSPEC = -2211, PYTOOLKIT_BADSNAPSHOTFORMAT = -2212,   PYTOOLKIT_BADSNAPSHOTMASK = -2213, PYTOOLKIT_BADBOARDNO = -2214, PYTOOLKIT_BADBOARDNAME = -2215, PYTOOLKIT_BAD5565INTNO = -2216 }
enum	CCURSIMWB_OLicense_Errors { OLIC_ERROR_NOT_ENOUGH_LICENSE = -3001 }
enum	CCURSIMErrors_rpcCALL { RPCGUI_NOFUNCTION = -1401 }
enum	CCURSIMErrors_Hardware { HARDW_ETHERCATSDODOWNLOAD = -1501 }
Functions
int	ccurTSC_printf (const char *format,...)
int	ccurTSC_fprintf (FILE *fp, const char *fmt,...)
int	ccurTSC_noTSprintf (const char *fmt,...)

---

Define Documentation

#define Log_Warning	(	format,
		...		)	ccurTSC_printf ("WARNING:%18s:%5d: " format, __FILE__,__LINE__,## __VA_ARGS__)

#define Log_Error	(	format,
		...		)	ccurTSC_printf (" ERROR:%18s:%5d: " format, __FILE__,__LINE__,## __VA_ARGS__)

#define Log_Info	(	format,
		...		)	ccurTSC_printf (" INFO:%18s:%5d: " format, __FILE__,__LINE__,## __VA_ARGS__)

#define DBG_APPEND	(	format,
		...		)

Value:

if (debug) { \
        ccurTSC_noTSprintf( format,## __VA_ARGS__);\
    }\
;

#define DBG_PRINTF	(	format,
		...		)

Value:

if (debug) { \
        ccurTSC_printf ("  DEBUG:%18s:%5d: " format, __FILE__,__LINE__,## __VA_ARGS__);\
    }\
;

#define DBGLVL_PRINTF	(	bits,
		format,
		...		)

Value:

if (debug & bits) { \
        ccurTSC_printf ("  DEBUG:%18s:%5d: " format, __FILE__,__LINE__,## __VA_ARGS__);\
    }\
;

---

Enumeration Type Documentation

enum CCURSIMErrors_Network

Errors related to generic network operation.

Enumerator:

NET_CONNREFUSED	Connection refused by the server. Check that the server program is running on the server machine.
NET_HOSTNOTFOUND	Could not resolve the host name. Check that the host has an entry in the local /etc/hosts file.
NET_CONNRESET	Connection was reset by the peer in the middle of a transfer.
NET_NOTCONNECTED	Attempting to communicate with the server while not connected.
NET_BUFFERTOOLONG	The command buffer send was longer than the maximum supported by the system.
NET_TOOMANYCLIENTS	The maximum number of clients allowed is already connected to the server.
NET_SOCKETERROR	Error obtaining socket object from the system.
NET_WRITEERROR	Network error while writing to the socket.
NET_READERROR	Network error while reading from the socket.
NET_BADCOMMANDFORMAT	Ascii command was not formatted properly.
NET_CONNECTEDALREADY	Attempt to connect while already connected. Disconnect and then retry.
NET_TIMEOUT	Time out on socket read or write operation.
NET_NOREFRESHPORT	A client is asking for asynchronous data update but has not provided the TCP/IP port.
NET_NOSCRIPTPORT	A client is asking for script output update but has not provided the TCP/IP port.
NET_BINDERROR	A network bind() call failed.
NET_NOPORT	A client is asking for a service that requires a listening port on its end,but has failed to provide it.
NET_IPNOTALLOWED	The client is not allowed to connect from that IP. For connections on port without login, the client IP must listed in the /usr/local/ccursim/etc/hosts.access file.
NET_BADREPLYFORMAT	Ascii reply was not formatted properly.

enum CCURSIMErrors_User

Error related to operation with user data base.

Enumerator:

USER_NOTFOUND	The user attempting to login is not defined in the user database
USER_NOPRIVILEGE	The user is attempting an operation for which he needs more privilege.
USER_NOTDEFINED	Trying to login with a user that is not defined.
USER_BADPASSWD	Attempt to login with a bad password.
USER_STILLLOGGED	Attempt to login twice in a row without login out first.
USER_NOTLOGGED	Attempt to send command to the server while no logged in.
USER_INVALID	Missing user name on a command that requires a user to be specified.
USER_FILEERROR
USER_EXISTS	Attempt to add a user that already exists.
USER_BADPRIVILEGE	Bad privilege specified in a change privilege command.
USER_INVALIDPASSWD	Either no password or empty password supplied.
USER_NOPASSWD	Missing password on a command that requires a password.
USER_INVALIDCHAR	Invalid character in password. Either ':' or ','.
USER_ADMINLOGGEDIN	Administrator already logged in.
USER_NOAPPTYPE	Missing application type on the login command where this is required to identify the type of client.
USER_NOLICENSE	Not enough license to let the client in.
USER_NOFIBEXLICENSE	No license for the FIBEX tool on this computer.
USER_BADGROUP	Missing user group on a command the requires it.
USER_NOTINGROUPDENIED	User is not a member of the group, denied access.
USER_NOSIMPACKLICENSE	No license for SIMPACK on this computer.
USER_NOFMULICENSE	No license for FMU on this computer.
USER_NOHMILICENSE	No license for HMI on this computer.
USER_BADCONNECTIONTYPE	Invalid connection type .
USER_NOIOMONITORLICENSE	No license for IO_MONITOR on this computer.
USER_NOGLSVIEWERLICENSE	No license for GLSVIEWER on this computer.
USER_NOADAMSLICENSE	No license for ADAMS on this computer.
USER_NOCARMAKERLICENSE	No license for CarMaker on this computer.

enum CCURSIMNet_Replies

Possible network replies from configuration server.

Enumerator:

NET_REPLY_EMPTY	Server reply without content.
NET_REPLY_ASCII	Server reply continued with ascii lines until empty lines.
NET_REPLY_BINARY	Server reply including binary data.
NET_UPDATE_BINARY	Server update message with binary vector data.
NET_UPDATE_ASCII	Server update message for ASCII values .
NET_UPDATE_LOG	Server update message for logger messages .
NET_UPDATE_SCHED	Server update message for scheduler info .
NET_SERVER_COMMAND	Command from server to HMI client .
NET_UPDATE_TESTINFO	Server update message for test info .
NET_UPDATE_GENINFO	Server update message for signal generator info .
NET_UPDATE_IO	Server update message for CAN or LIN message buffers .
NET_UPDATE_SCHEDASYNC	Server update message for scheduler info for async models .

enum CCURSIMErrors_RTDB

Error codes related to operations on RTDB items.

Enumerator:

RTDB_MAP	Error mapping the RTDB into the address space of the calling program.
RTDB_POINTNOTFOUND	Request for point not in RTDB.
RTDB_POINTNOTINLIST	Attempt to remove non existant point from refresh list.
RTDB_DBFILENOTFOUND	Attempt to load a RTDB from file that does not exist.
RTDB_POINTEXISTS	Attempt to insert duplicate point in RTDB.
RTDB_DBNOROOM	No space left in RTDB to insert new point.
RTDB_NOTMAPPED	Trying to reference RTDB info while it has not be mapped in memory.
RTDB_NODBFILE	DB file not specified with command to load RTDB.
RTDB_BADPOINTTYPE	Bad point type specified when inserting new point in RTDB.
RTDB_BADCVTTYPE	Bad CVT type while inserting new point in RTDB.
RTDB_BADKEYWORD	Bad meta data keyword specifier while changing/inserting point in RTDB.
RTDB_BADBOARDID	Bad board id specified for the RTDB point
RTDB_BADSLOT	Bad slot number.
RTDB_BADCHANNEL	Bad channel specified for the RTDB point.
RTDB_BADBITNUM	Bad bit number (<0 || > 15) specified for digital point in RTDB.
RTDB_MISSINGPOINTNAME	Missing point name on command that requires it.
RTDB_NAMETOOLONG	Attempt to insert into RTDB a point whose name is too long.
RTDB_BADFLOATVALUE	A ASCII floating point was supplied that cannot be converted to binary.
RTDB_BADINTVALUE	A ASCII int value was supplied that cannot be converted to binary.
RTDB_NOTSTRINGVAR	Request for string value was made but the Item is not of string type.
RTDB_NOSTRINGMEMORY	Request for string value but the memory was not allocated for the string value.
RTDB_MISSINGVALUE	Required value is missing.
RTDB_DBLOADEDALREADY	Attempt to load the db when one is loaded already
RTDB_OPENCVTFILE	Error occured while writing the cvt.h file.
RTDB_MISSINGFILENAME	The required file name is missing.
RTDB_MISSINGCVTTYPE	A record was received with no cvttype so we can't convert the string value to the corrrect type.
RTDB_NOTINCVT	Request for CVT value of a point that is not in the CVT.
RTDB_NOSTRINGVAR	A generic API call was made into a function that does support string variables.
RTDB_BADSDI	Bad SDI value for ARINC channel.
RTDB_BADPARITY	Bad parity value for ARINC channel.
RTDB_BADSPEED	Bad speed value for ARINC channel.
RTDB_BADTXPERIOD	Bad transmit periodi for ARINC channel.
RTDB_BADAFDXRECORD	Unknown AFDX record type .
RTDB_MISSINGDESCRIPTION	Missing description while creating a new database.
RTDB_ILLEGALSTRINGLENGTH	Bad maximum string length for string variable .
RTDB_TESTRUNNING	A test is running, some operations can only be performed when the RT host is not running a test .
RTDB_IODBERROR	Error reading iodb from disk.
RTDB_AFDXMSGTABLEFULL	No room in resident message table.
RTDB_AFDXMSGNOTFOUND	Resident AFDX message not found.
RTDB_NOALTVALUE	Item does not have an alternate value.
RTDB_NOINITCONDNAME	Request for initial conditions array without specifying a name .
RTDB_NORTWNAME	Request for initial conditions array without specifying namei of rtw .
RTDB_GENMISSINGPARM	Operation on a signal generator is missing a parameter.
RTDB_TESTNOTRUNNING	A test is not running, some operations can only be performed when the RT host is running a test .
RTDB_MISSINGBOARDID	Missing board id in hardware mapping record.
RTDB_ASYNCQFULL	Asynchronous I/O input queue full. This means that the asyncioin process does not have enough run time to process all the elements in the queue. Increase the run time by specifying it when starting the session in the test control panel.
RTDB_MISSINGBOARDNUM	Missing board number in hardware mapping record.
RTDB_MISSINGPARAM	A parameter that is needed for an operation is missing.
RTDB_NOSPAREITEM	Trying to take a spare RTDB item from the spare list but not point of this type left.
RTDB_NOMEMORY	Request for get/set value for array item with NULL pointer in value array.
RTDB_LOCKED	The user wants to load a RTDB that is already being edited by a different admin login.
RTDB_MISSINGGROUPNAME	The group was not specified when saving the RTDB.
RTDB_MISSINGRESOURCETYPE	The resource type was either not specified or is not supported.
RTDB_MISSINGRESOURCENAME	The resource name was not specified.
RTDB_SETCPUAFFINITYERROR	mpadvise failed while set setting cpu affinity.
RTDB_INVALIDRTDBNAME	Invalid character in RTDB name, must only have characters in [A-Z,a-z,0-9,_]
RTDB_NETMSGTABLEFULL	No room in NET-IO resident message table.
RTDB_NETMSGNOTFOUND	Resident NET-IO message not found.
RTDB_MISSINGFORMNAME	Missing form name in command. Form name must be specified for form import/capture.
RTDB_FORMNOTFOUND	Form not found for the specified running test.
RTDB_CIGIMSGTABLEFULL	No room in CIGI resident message table.
RTDB_SETCPUSHIELDINGERROR	cpuctl failed while setting cpu shielding.
RTDB_MERGE	RTDB merge error (see cfgsrv.log for details).
RTDB_FDXMSGTABLEFULL	No room in FDX resident message table.
RTDB_FDXMSGNOTFOUND	Resident FDX message not found.
RTDB_ALREADYEXITS	Request to create a new RTDB that already exists.
RTDB_IMPORTCARMAKER	Could not run the importCarMaker.pl script.

enum CCURSIMErrors_Projects

Error codes related to operations on projects.

Enumerator:

PROJECT_MISSINGNAME	Missing project name in client command.
PROJECT_NOTEXISTS	The project name does not exist.
PROJECT_DEFAULT	Operation not allowed on default group.
PROJECT_INVALIDNAME	Invalid resource name for project .
PROJECT_ILLEGALRESOURCE	Illegal resource name, must be one of "RTDB","RTW","Tests","UserSource","MDL","SIMPACK,"ENV","MDL","ASAM","Script.

enum CCURSIMErrors_Config

Generic error from the configuration server.

Enumerator:

CONFIG_NOCOMMAND	The command is not supported by the server.
CONFIG_NOMEMORY	Memory allocation error.
CONFIG_FORKERROR	Could not fork a child process.

enum CCURSIMErrors_GenericFile

Errors related to generic file operations.

Enumerator:

UTIL_FILEERROR	File access error while doing file read/write operations.
UTIL_FILENOTFOUND	Request for a file that does not exist.
UTIL_DIRECTORYCREATE	Error creating directory .
UTIL_FILEOPENERROR	Error opening file.
UTIL_NOBINARYDEFAULT	Error, can't write binary data to default logger.
UTIL_FILEREMOVEERROR	Error deleting a file.
UTIL_MISSINGFILENAME	Missing file name. The name of a file should be specified with the command.
UTIL_MISSINGDIRNAME	Missing directory name. The name of a directory should be specified with the command.
UTIL_PIPEERROR	Pipe() create error.
UTIL_DIRECTORYEXISTS	Directory exists already creating directory .

enum CCURSIMErrors_GEN

Error related to the signal gewnerator API.

Enumerator:

GEN_GENERATORNOTFOUND	Trying to start/stop a generator that does not exist.
GEN_BADFREQUENCY	Bad frequency supplied for a generator. i.e. freq > half of sampling rate.
GEN_BADDUTYCYCLE	Duty cycle > 100 %.
GEN_BADDURATION	Bad value for duration. Probably a <= number .
GEN_BADWAVEFORM	A unsupported wave form was specified.
GEN_BADCALLBACK	Missing call back routine for termination condition.
GEN_MISSINGENDCOND	Bad end condition . Not duration or value.
GEN_GENCMDQFULL	The command FIFO used to communicate with the generator thread is full.
GEN_ASAMFILENOTFOUND	The ASAM signal file was not found.
GEN_ASAMOPEN	The ASAM signal file could not be opened.
GEN_ASAMREADINFO	ASAM size/interp read error.
GEN_ASAMREADDATA	ASAM data read error.

enum CCURSIMErrors_SCRIPT

Enumerator:

SCRIPT_NOTARINCPOINT	An operation to change arinc parameters was tried on a point which is not defined as ARINC429.
SCRIPT_NOTARINCOUTPUT	An operation to change arinc parameters was tried on a point which is not defined as ian ARINC429 output.
SCRIPT_BADARINCTXRATE	The arinc transmit rate was not specifief within the 1 to 1000 valid range.
SCRIPT_INPUTTIMEOUT	Time out while waiting for script input .
SCRIPT_BADARINCBOARD	Bad board number specified.
SCRIPT_BADARINCCHANNEL	Bad ARINC 429 channel specified.
SCRIPT_NOTAFDXPOINT	An operation to change afdx parameters was tried on a point which is not defined as AFDX.
SCRIPT_NOTAFDXOUTPUT	An operation to change afdx parameters was tried on a point which is not defined as an AFDX output.
SCRIPT_NOTNETPOINT	An operation to change net parameters was tried on a point which is not defined as NET-IO.
SCRIPT_NOTNETOUTPUT	An operation to change net parameters was tried on a point which is not defined as an NET-IO output.
SCRIPT_NOTCANOUTPUT	An operation to change CAN parameters was tried on a point which is not defined as an CAN output.
SCRIPT_NOTCANPOINT	An operation to change CAN parameters was tried on a point which is not defined as CAN.
SCRIPT_NOTLINOUTPUT	An operation to change LIN parameters was tried on a point which is not defined as an LIN output.
SCRIPT_NOTLINPOINT	An operation to change LIN parameters was tried on a point which is not defined as LIN.
SCRIPT_NOTCIGIPOINT	An operation to change CIGI parameters was tried on a point which is not defined as CIGI-IO.
SCRIPT_NOTCIGIOUTPUT	An operation to change CIGI parameters was tried on a point which is not defined as an CIGI-IO output.
SCRIPT_NOTFDXPOINT	An operation to change FDX parameters was tried on a point which is not defined as FDX.
SCRIPT_NOTFDXOUTPUT	An operation to change FDX parameters was tried on a point which is not defined as an FDX output.

enum CCURSIMRTErrors_SCRIPT

Enumerator:

SCRIPTRT_SCRIPTSTART	Beginning of script.
SCRIPTRT_SCRIPTEND	End of script.
SCRIPTRT_SCRIPTSECTIONSTART	Start of section marker.
SCRIPTRT_SCRIPTSECTIONEND	End of section marker.
SCRIPTRT_WAITCOND_TIMEOUT	Waiting on logical condition failed with time out expired.
SCRIPTRT_PROMPT_TIMEOUT
SCRIPTRT_LOGTEST_FAILED	Logical test failed.
SCRIPTRT_RTDBVAR_NOTFOUND	Variable not found.
SCRIPTRT_SIGGEN_CREATE_ERROR	Error creating signal generator.
SCRIPTRT_TOOMANY_CALLBACKS	Trying to register too may callbacks, no room in callback table.
SCRIPTRT_VALUEOUTOFRANGE	Value out of expected range.
SCRIPTRT_ABORT	Abort requested by script.

enum CCURSIMErrors_SourceProgram

Error related to source program uploads.

Enumerator:

SOURCE_MISSINGFILENAME
SOURCE_MISSINGDESCRIPTION
SOURCE_MISSINGTYPE
SOURCE_BADTYPE
SOURCE_UNZIPERROR
SOURCE_NOTEXISTS
SOURCE_MAKEERROR
SOURCE_NOBUILDOPTION
SOURCE_MISSINGFIXEDSTEP

enum CCURSIMErrors_TestManagement

Error related to test & session management .

Enumerator:

TEST_MISSINGTESTID	Missing testId parameter on command that requires one, such as test create or session create.
TEST_MISSINGSESSIONID	Missing sessionId parameter on command that requires one, such as session creata, session start, etc.
TEST_MISSINGRUNFRAMES	Did not specify the test duration while creating a session.
TEST_MISSINGFRAMERATE	Did not specify the frame rate while creating a session.
TEST_MISSINGSCRIPT	Missing script program name associated to the test.
TEST_MISSINGRTW	Missing RTW name associated to the test.
TEST_MISSINGDB	Missing RTDB name associated to the test.
TEST_TESTIDEXISTS	User trying to create a testId that already exists.
TEST_SESSIONIDEXISTS	User is trying to create a session that already exists.
TEST_ILLECALCHARINNAME	Bad character in testId,sessionID. Must be ascii and not [/ ,=].
TEST_SESSIONNOTFOUND	Can't find the test session to start.
TEST_MISSINGSESSIONSETUP	Can't find the setup file to start the session.
TEST_SCHEDULERSTART	Error starting the scheduler.
TEST_RUNNINGALREADY	Can't start a test while one 1 running already.
TEST_MISSINGFBSKEY	Missing FBS key defining a session with a non-default user defined FBS.
TEST_MISSINGFBSDEVICE	Missing FBS device defining a session with a non-default user defined FBS.
TEST_MISSINGRESOURCE	Can't find the resource file to start the session.
TEST_REMOTESTARTTIMEOUT	Test did not start running (via remote request) before timeout reached.
TEST_ARCHIVEMISSINGPARAM	Missing parameter to archive a test
TEST_REMOTESTOPTIMEOUT	Test did not stop running (via remote request) before timeout reached.
TEST_NOTFOUND	Can't find the test to start.

enum CCURSIMSCompletionCode_Scheduler

Enumerator:

SCHED_TESTCOMPLETE
SCHED_SCRIPTSTOPSUCCESS
SCHED_SUCCESSEORSTOP	Stop at end of recording.
SCHED_STOPSUCCESS_EOS	Stop test at end of script.
SCHED_STOPSUCCESS_RTW	Stop test at end of RTW model run.
SCHED_STOPSUCCESS_CARMAKER	Stop test at end of RTW model run.
SCHED_INITFAILURE	Failure during test initialization.
SCHED_USERABORT	User aborted the running test.
SCHED_OVERRUNABORT	Running test stopped because of too many overruns.
SCHED_SCRIPTSTOPERROR	Running test was stopped by the user script.
SCHED_DLABORT	Abort caused by data logger error.
SCHED_IOTASKABORT	Abort caused by ioTask error .
SCHED_RTWFAILEDINIT	Abort by RTW faile to init R_INIT == 0 .
SCHED_DLREADERABORT	Abort caused by data recorder reader.
SCHED_FBSABORT	Abort caused by FBS termination.
SCHED_RTWABORT	Abort caused by RTW request.
SCHED_DLABORTFAILEDLOCK	Abort caused by data logger error that can't get lock on circular logger directory.
SCHED_FAILEDUSERINITPROCESS	Abort caused by the user initialization process .
SCHED_DLABORTLOCKERROR	Abort caused by O/S error trying to flock file.
SCHED_SIGSEGV	A SimWB program crashed with a SIGSEGV.
SCHED_BUSY	Scheduler operation in progress.
SCHED_RTW_MULTIRATEOVEERUN	A multi rate subsystem in a RTW based model has overrun.
SCHED_STROVERFLOW	Appending data to a string has overflowed buffer.
SCHED_INITSCRIPTABORT
SCHED_FPEABORT	The Init script has an error and want to abort the test.
SCHED_FMUABORT	The FPE handler aborted the test. Abort caused by FMU request.
SCHED_ADAMSABORT	Abort caused by ADAMS request.
SCHED_SCHEDABORT	Abort caused by scheduler error .
SCHED_TASKNOTFOUND	Task not found on scheduler list.

enum CCURSIMErrors_DLAccess

Enumerator:

DLFILE_FRAMENOTFOUND	Can't find record corresponding to starting frame in data logger index file.
DLFILE_DATAFILEOPEN	Can't open the data logger data file for the specified testId/SessionId.
DLFILE_INDEXFILEOPEN	Can't open the data logger index file for the specified testId/SessionId.
DLFILE_METAFILEOPEN	Can't open the data logger record meta file or the running intervals for the specified testId/SessionId.
DLFILE_VARNOTFOUND	At list one data item not found in the list passed by the user.
DLFILE_NOLASTUPDATE	Internal error, the value of a variable was not found at the last full record update.
DLFILE_INVALIDARG	Invalid argument in call. Either nValues or nVariables <= 0 or startFrame < 0.
DLFILE_FRAMETOOLARGE	Requesting data for a frame that is beyond what has been recorded.
DLFILE_CIRCLOGLOCKED	The circular logger is locked.

enum CCURSIMErrors_DLReader

Enumerator:

DLREADER_ERROR_SESSIONNOTOPEN
DLREADER_ERROR_FILEOPEN
DLREADER_ERROR_READMETA
DLREADER_ERROR_READDATA
DLREADER_ERROR_QUERYTEST
DLREADER_ERROR_OUTOFSYNCREPLY

enum CCURSIMErrors_ASAM

Enumerator:

ASAM_ERROR_MAKESRV	The make process to build the ASAMsrv task failed.
ASAM_ERROR_SIGNALASAMSRV	The command to signal ASAMsrv failed.
ASAM_ERROR_NOTRUNNING	ASAMsrv can't run because no test is running.
ASAM_ERROR_NOTLOGGING	ASAMsrv can't run because test is not logging data.
ASAM_ERROR_DIRECTIO	ASAMsrv can't run because logging is direct I/O.
ASAM_ERROR_BADSIGNALTYPE	Bad ASAM server signal type.
ASAM_ERROR_SIMWB_TARGET	Malformed SIMWB_TARGET.
ASAM_ERROR_MISSING_LOCK	Missing lock value in ASAM lock platform command.
ASAM_ERROR_ALREADY_LOCKED	ASAM lock platform held by another client.
ASAM_ERROR_WRITE_XML	Error writing ASAM target to XML file.
ASAM_ERROR_READ_XML	Error reading ASAM target XML file.
ASAM_ERROR_XML_NOT_TARGET	XML not SIMWB_TARGET information.
ASAM_PYTHON_VERSION	Function unavailable in this Python version.
ASAM_ERROR_BADSEGMENT	Unrecognized ASAM segment type.

enum CCURSIMErrors_DLFSrv

Enumerator:

DLFSRV_ERROR_SESSIONNOTOPEN
DLFSRV_ERROR_FILEOPEN
DLFSRV_ERROR_READMETA
DLFSRV_ERROR_BAD_STARTFRAME
DLFSRV_ERROR_BAD_NFRAMES
DLFSRV_ERROR_BAD_NVARIABLES
DLFSRV_ERROR_QUERYTEST
DLFSRV_ERROR_OUTOFSYNCREPLY
DLFSRV_ERROR_ZLIBCOMPRESS
DLFSRV_ERROR_SOCKREAD
DLFSRV_ERROR_SOCKWRITE
DLFSRV_ERROR_BAD_NAME
DLFSRV_ERROR_BAD_INDEX
DLFSRV_ERROR_RECSIZMISMATCH
DLFSRV_ERROR_INSUFFICIENT_INFO

enum CCURSIMWBErrors_PYToolkit

Enumerator:

PYTOOLKIT_LISTEXPECTED	List expected.
PYTOOLKIT_TOOMANYVALUES	Too many values.
PYTOOLKIT_NUMVALUES	Number of values not as expected.
PYTOOLKIT_BADINDEX	Bad row or column index.
PYTOOLKIT_BADFISCFAULT	FISC fault not one of GND, PWR, OPEN or C2C.
PYTOOLKIT_BADUEGOFAULT	UEGO fault not one of GND, PWR or OPEN.
PYTOOLKIT_BADRESISTORFAULT	RESISTOR fault not one of GND, PWR or OPEN.
PYTOOLKIT_BADFAULTDEVICE	Fault device not one of FISC, UEGO or RESISTOR.
PYTOOLKIT_MISSINGFAULTS	Signal fault defined without any faults.
PYTOOLKIT_RELATIVEPATH	Relative paths not allowed.
PYTOOLKIT_BADPGMSPEC	Badly formed program specification.
PYTOOLKIT_BADSNAPSHOTFORMAT	Bad snapshot format value.
PYTOOLKIT_BADSNAPSHOTMASK	Bad snapshot mask value.
PYTOOLKIT_BADBOARDNO	Bad board number.
PYTOOLKIT_BADBOARDNAME	Bad board name.
PYTOOLKIT_BAD5565INTNO	Bad 5565 interrupt number.

enum CCURSIMWB_OLicense_Errors

Enumerator:

OLIC_ERROR_NOT_ENOUGH_LICENSE

Not enough license for a module

enum CCURSIMErrors_rpcCALL

Enumerator:

RPCGUI_NOFUNCTION

Function called does not exist.

enum CCURSIMErrors_Hardware

Enumerator:

HARDW_ETHERCATSDODOWNLOAD

ethercat command failed to download sdo to slave .

---

Function Documentation

int ccurTSC_noTSprintf	(	const char *	fmt,
			...
	)
