FPGA Board
-
CP-FPGA-2 (362K LE), CP-FPGA-3 (504K LE), CP-FPGA-4 (480K LE), CP-FPGA-5 (1150K LE)
-
Full height, full lenght PCI Express (12.3" long x 3.8" high)
-
Approximately 50 watts (12VDC @ 4 Amp) PCIe slot power
-
Approximately 100 watts (12VDC @ 8 Amp) External power connector(Optional)
-
Cooling requirement for CP-FPGA-4 and CP-FPGA-5 - forced air approximately 400 LFM
CP-FPGA-2 and CP-FPGA-3 features
-
Concurrent's programmable FPGA PCIe card features a powerful field-programmable gate array with 362K or 504K logic elements that supports both digital and analog I/O
-
The card can control up to 96 digital I/O signals along with 16 analog inputs and 16 analog outputs
-
The programmable FPGA card features isolated I/O power, high-speed digital isolators and multi-board synchronization
-
16 Channel 16 bit A/D Converter
-
16 Channel 16 bit D/A Converter
-
96 Multiplexed Digital Input Output Channels
Figure: CP-FPGA-2 programmable FPGA card
CP-FPGA-4 and CP-FPGA-5 features
-
Concurrent's programmable FPGA PCIe card features a powerful field-programmable gate array with 480K or 1150K logic elements that supports both digital and analog I/O
-
It can control up to 32 high speed digital I/O signals, 32 high speed LVDS I/O signals along with support for our two PMFC daughter cards
-
4-lane Gen 2 PCIEe
-
32-channels High Speed LVDS I/O
-
32-channels High Speed Digital I/O with 3.3V/5V TTL compatible, 32mA high drive, 65 mA low drive, selectable 100 ohm termination
-
Full size PCIe with two PMFC daughter cards

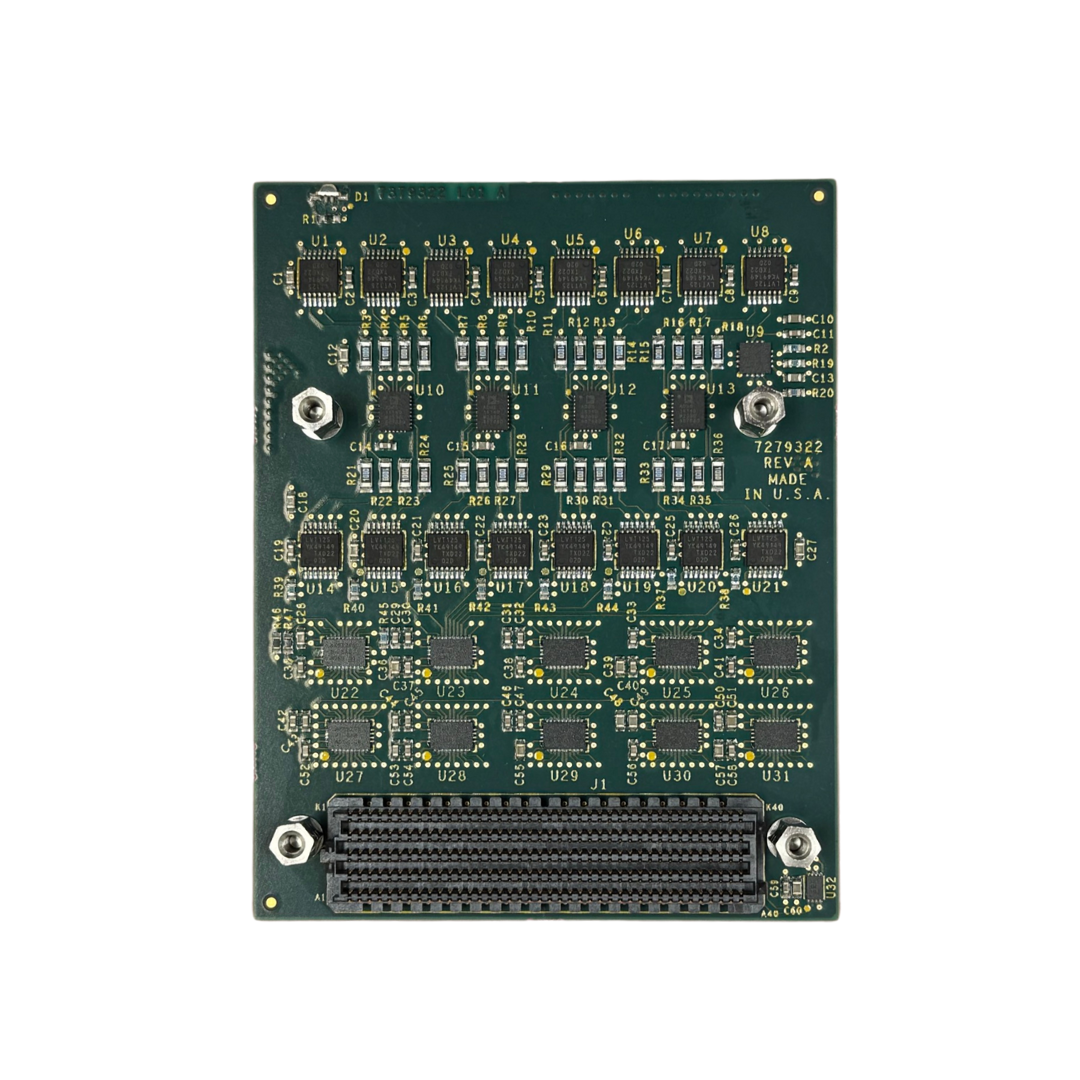

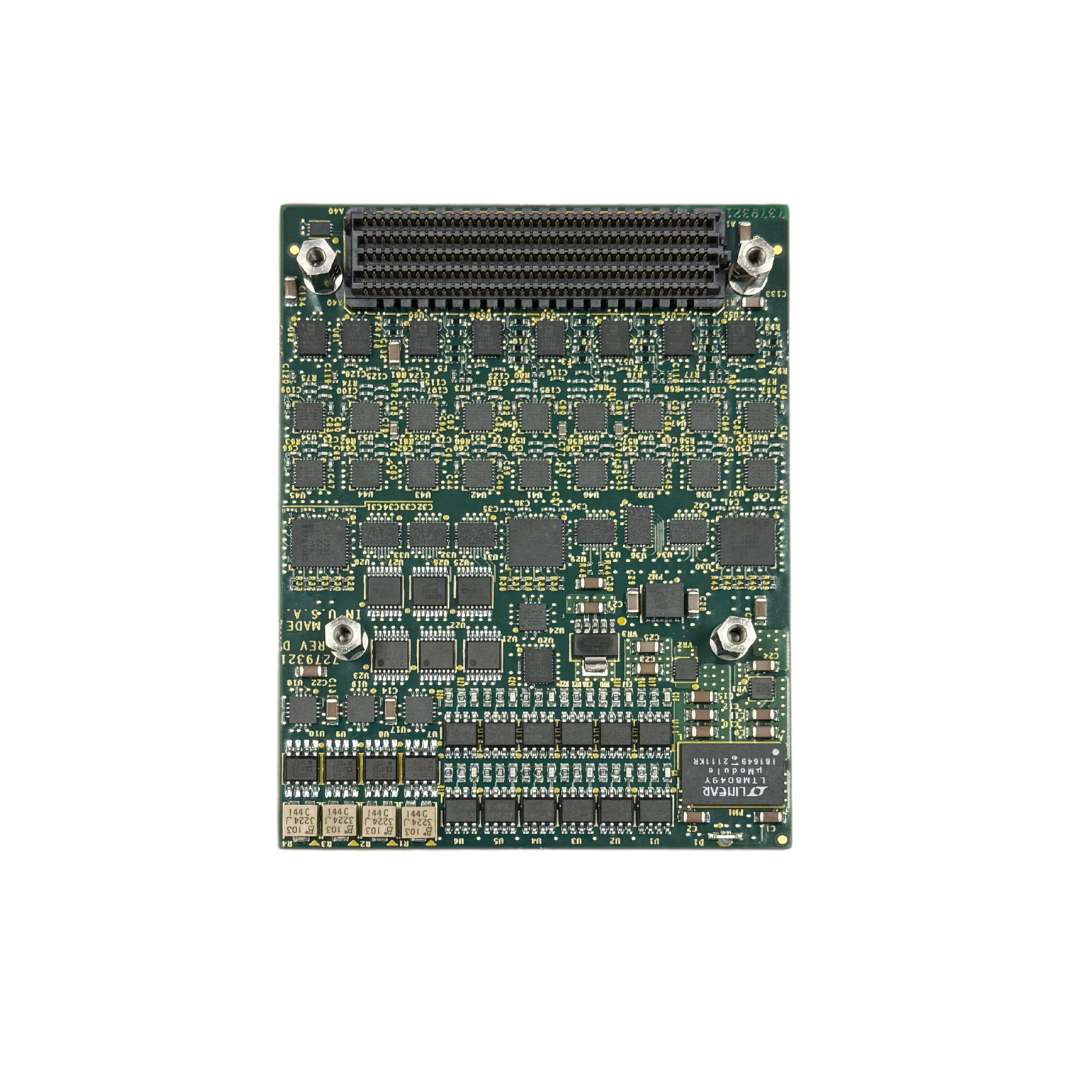

High Speed Analog I/O Daughter Card
Analog Input
-
12-channel single ended (+/-10V)
-
16-bit 4M samples/second
-
2.5MHz active anti-alias filter
Analog Output
-
12-channel single ended (+/-10V)
-
16-bit 1M samples/second 12-channel
-
16-bit 2M samples/second 6-channel
-
1.5MHz active anti-alias filter
-
10 milliamp output drive per channel

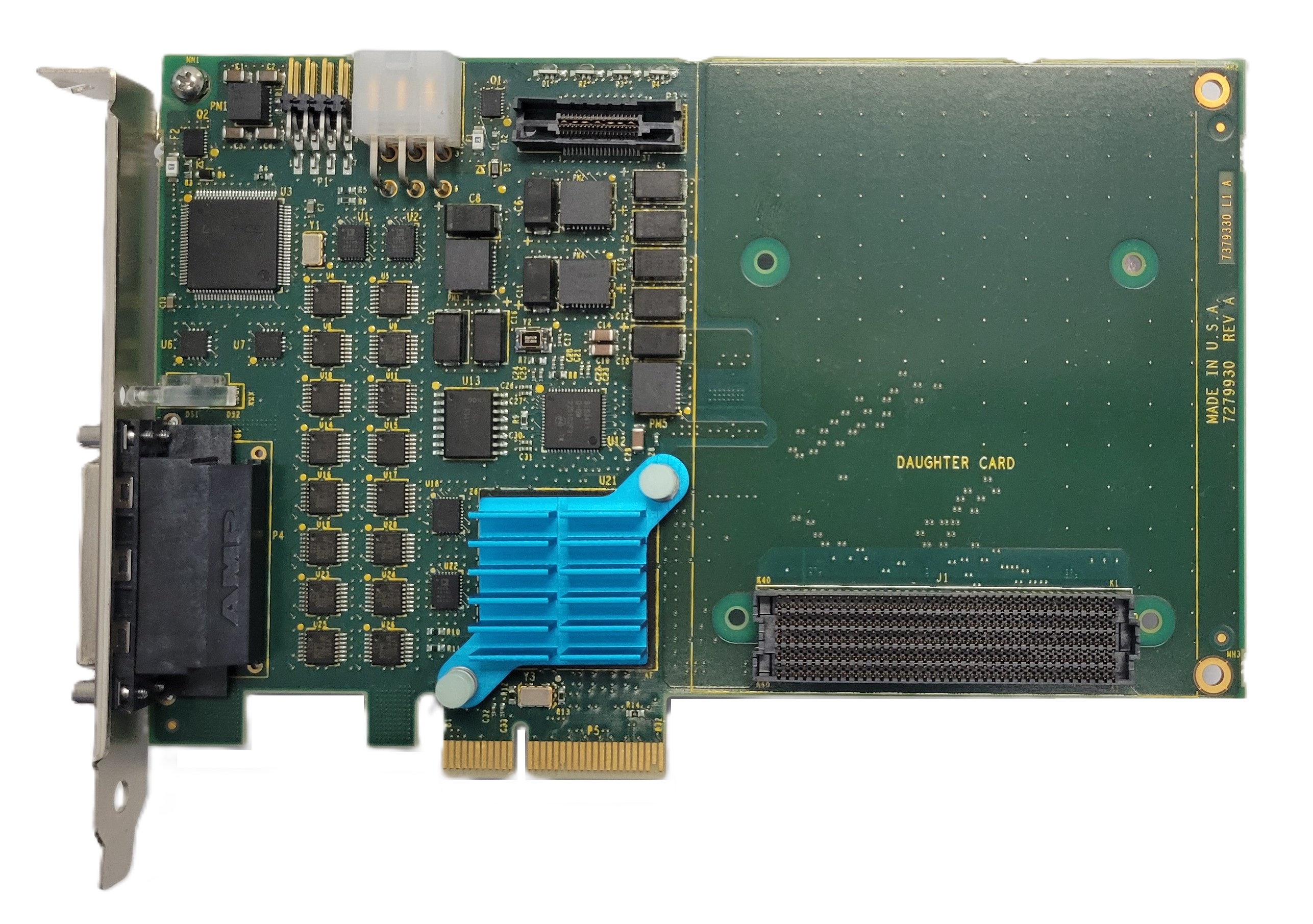

Figure: CP-FPGA-4 programmable FPGA card
Host/Target System
-
iHawk with RedHawk 6.5 and later
-
64 bit Operating System
-
PCIe X8 slot for a full length card
Client System
-
Windows or Linux
-
64 bit Operating System
-
Licensed version of Intel®/Altera® Quartus Standard or Pro edition
